Beyond the action proposal
A plausible action does not ensure the intended final object state.
Robot-GSTGeometry-aware spatial-temporal robot
policy representation and evaluation
Simulation and evaluation before acting.
We reconstruct robotic scenes to reason about future states
and verify actions and outcomes before execution.
Represent the world→Reason about future states→Verify actions and outcomes

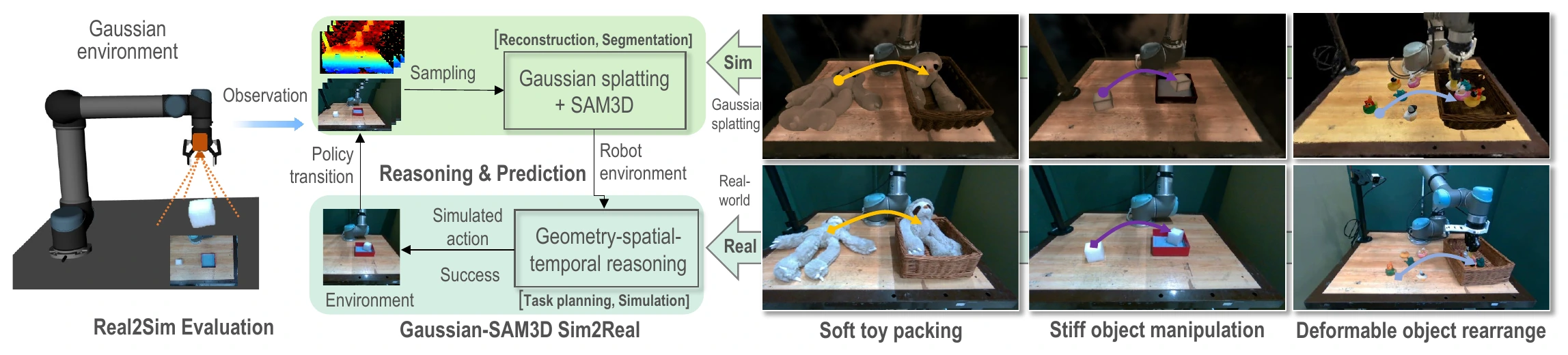

Paper overview
Problem & motivation
What happens after the action?
Reliable manipulation requires geometric understanding, post-action reasoning and evaluation before execution.
Before a real-world trial
Real-world trials are costly. We evaluate candidate behaviours in a reconstructed environment before rollout.
Ground affordances in 3D
We ground language-guided keypoints in 3D geometry to support feasible manipulation.
Our idea: a geometry-aware simulator that verifies actions and outcomes before execution.
Method
A simulator for reasoning and evaluation
We integrate scene reconstruction, spatio-temporal reasoning and state-based trajectory planning in one robotic environment.
01
Represent

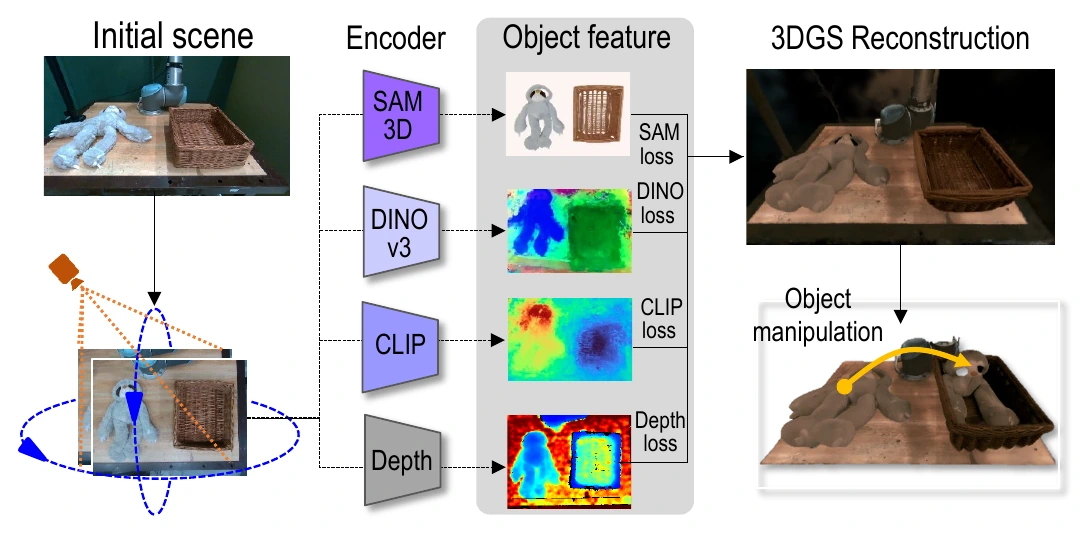

Gaussian-SAM3D simulation and evaluation environment
We combine 3D Gaussian Splatting and SAM3D with RGB-D observations to reconstruct scenes at real-world scale, aligned with the robot.
Appearance
Gaussian rendering provides photorealistic visual observations.
Geometry
Explicit scene and object geometry supports collision and contact reasoning.
Robot kinematics and physics/contact simulation govern the rollout; rendering supplies the observations.
02

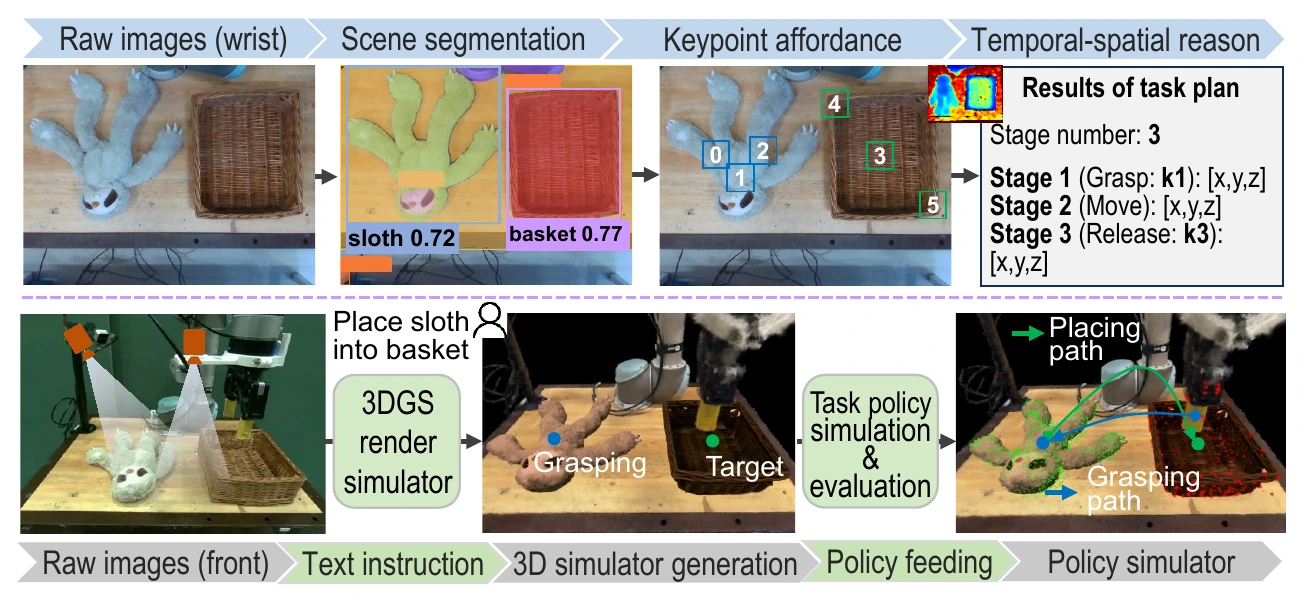

Reason
Turn language into relational geometry

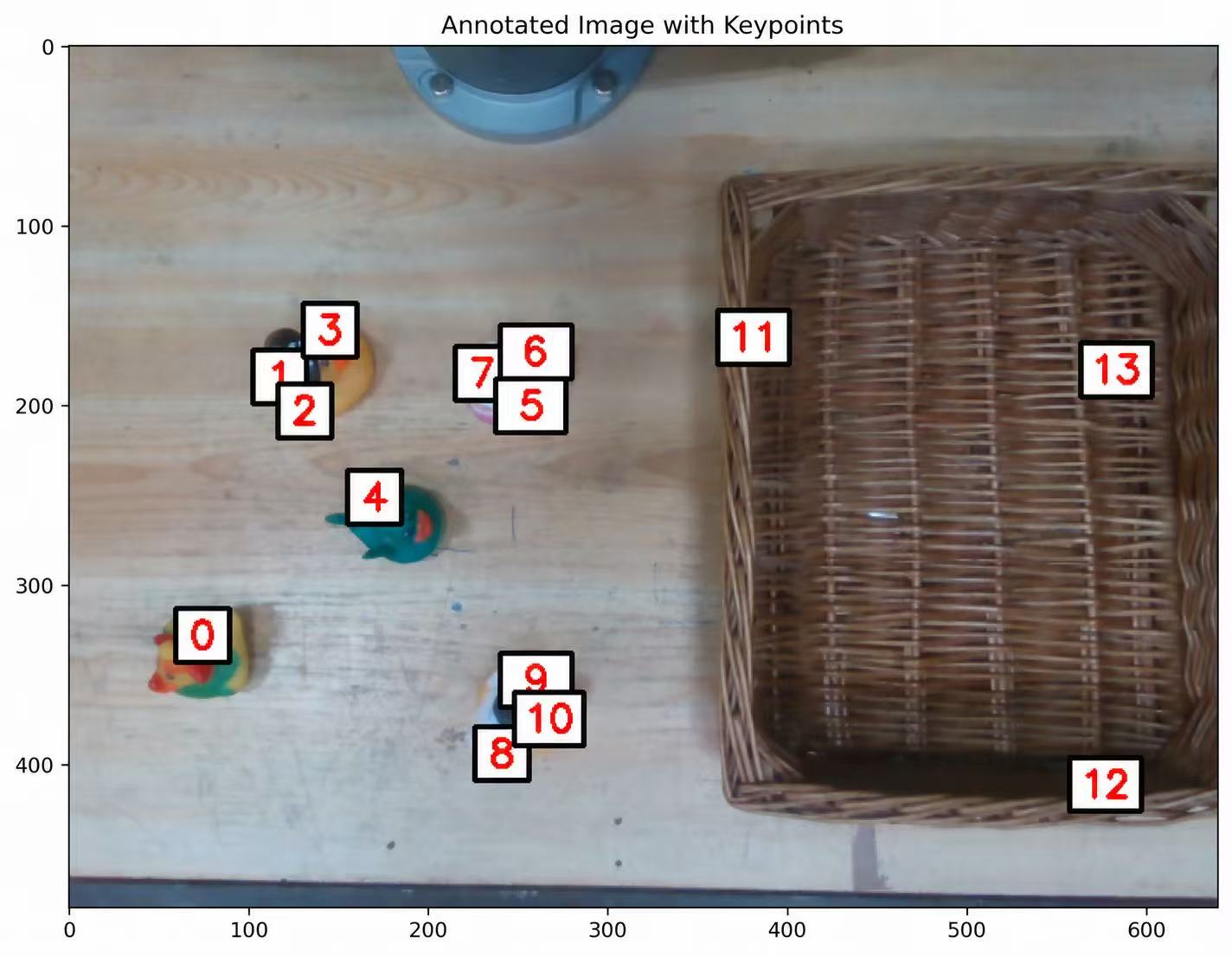

We lift task-relevant keypoints into metric 3D using depth, then encode proximity, alignment and relative pose as task constraints.
- 01
3D keypoints + language task
Identify task-relevant objects and relations.
- 02
Relational constraints
Specify stage goals and path requirements.
- 03
Stage target pose
Optimize the end-effector pose and gripper parameters.
03
Predict & verify
Plan with the object’s final state in mind
We predict final object states from candidate release poses, filter them with geometric checks, and plan trajectories toward the selected state.
Candidate trajectory→Simulate→Evaluate
Executable motion
Inverse-kinematics feasibility and path requirements.
Collision safety
Geometric clearance along the candidate trajectory.
Task completion
The final object state satisfies the task goal.
If any check fails
Revise the plan and repeat simulation before execution.
If all checks pass
Execute the verified plan on the real robot.
Experiments
From reconstructed scenes to real manipulation
Our full task rollouts pair simulation with real-world manipulation.
Place a cube into a box
We grasp, transfer and place the cube inside the box without collision.
Real-world success rate80% → 90%Without → with replanning
Full sequences, retimed for visual alignment.

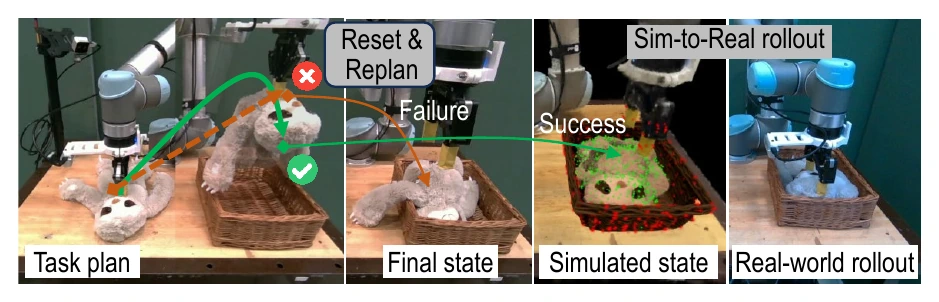

From failure to revision
Completing the motion is not enough
Part of the toy remains outside the basket, failing the full-containment goal.
We revise the policy and evaluate it in simulation before execution, achieving successful packing.
Revise → Simulate and evaluate → Execute
Quantitative results
Evidence for simulation-based evaluation
We evaluate reconstruction quality, sim–real consistency and manipulation success.
01

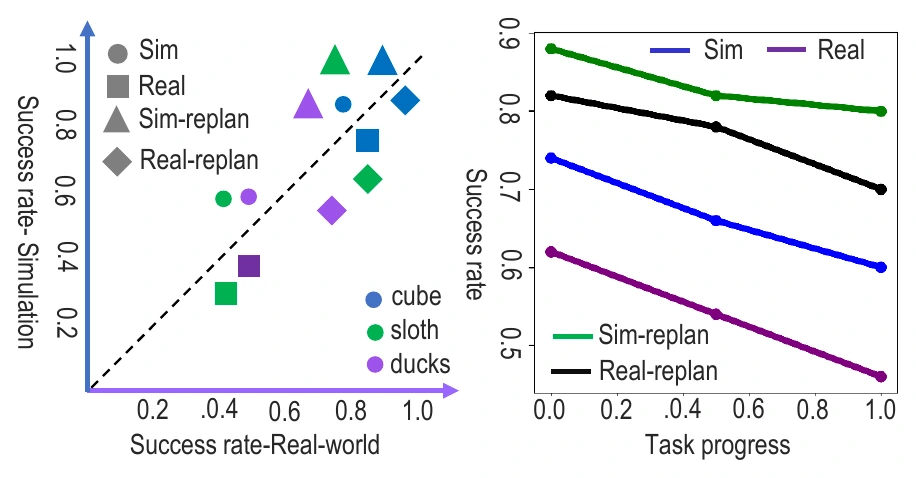

Simulation reflects real-world success trends
Our simulator captures real-world success trends across tasks, supporting evaluation before execution.
02
Evaluation and revision improve manipulation reliability
Our evaluation-and-replanning loop raises mean real-world success by 24.7 percentage points.
Without replanning55.3%
→With replanning80.0%
Mean real-world success
Three-task average
| Task | Without replanning | With replanning | ||
|---|---|---|---|---|
| Simulation | Real world | Simulation | Real world | |
| Cube placing | 80.0 | 80.0 | 100.0 | 90.0 |
| Toy packing | 60.0 | 40.0 | 100.0 | 80.0 |
| Duck rearrangement | 60.0 | 46.0 | 80.0 | 70.0 |
| Average | 66.7 | 55.3 | 93.3 | 80.0 |
03

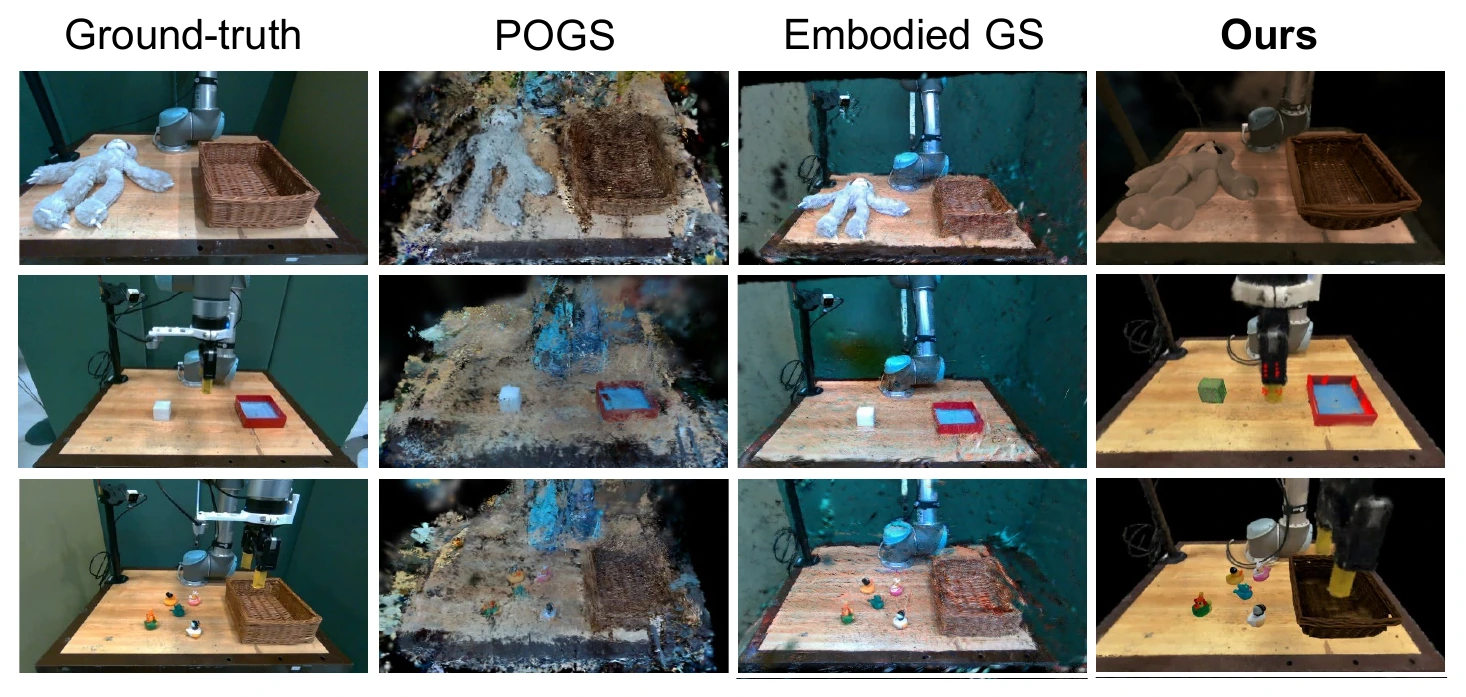

High-quality observations from reconstructed scenes
We achieve the best SSIM and LPIPS, and second-best PSNR among the compared methods.
| Method | PSNR ↑ | SSIM ↑ | LPIPS ↓ |
|---|---|---|---|
| GScream | 17.82 | 0.590 | 0.560 |
| VR-GS | 24.13 | 0.833 | 0.320 |
| Decoupled GS | 27.32 | 0.905 | 0.300 |
| POGS | 19.66 | 0.869 | 0.098 |
| D3DGS | 12.05 | 0.399 | 0.230 |
| Embodied GS | 14.95 | 0.389 | 0.360 |
| Robot-GST (ours) | 24.64 | 0.963 | 0.044 |
PSNR in dB; LPIPS uses VGG. Bold: best. Underline: second-best.
Research summaryGeometry-aware representation,
Geometry-aware representation,
state-aware execution
We build a Gaussian-SAM3D robotic environment that turns visual observations and language instructions into geometric constraints, predicted object states and executable motion.
By simulating candidate behaviours before execution, we evaluate both trajectory feasibility and task outcomes. Across three manipulation tasks, our framework connects geometric reasoning with more reliable real-world execution.
